R32 Ultranixx
Ducted Air-source Cold Climate Heat Pump
- Efficiency：Up to 19 SEER 10.5 HSPF
- Operates in outdoor temperature -30 °C to 54 °C
- Full Heating Capacity: Down to -15°C
- K-Quiet: Outdoor unit sound pressure level down to 60dB (A)
- Flexibility: Seamless integration with gas furnaces for hybrid heating
- Environment: Residencial and commercial spaces
Previous
Next
Features
01

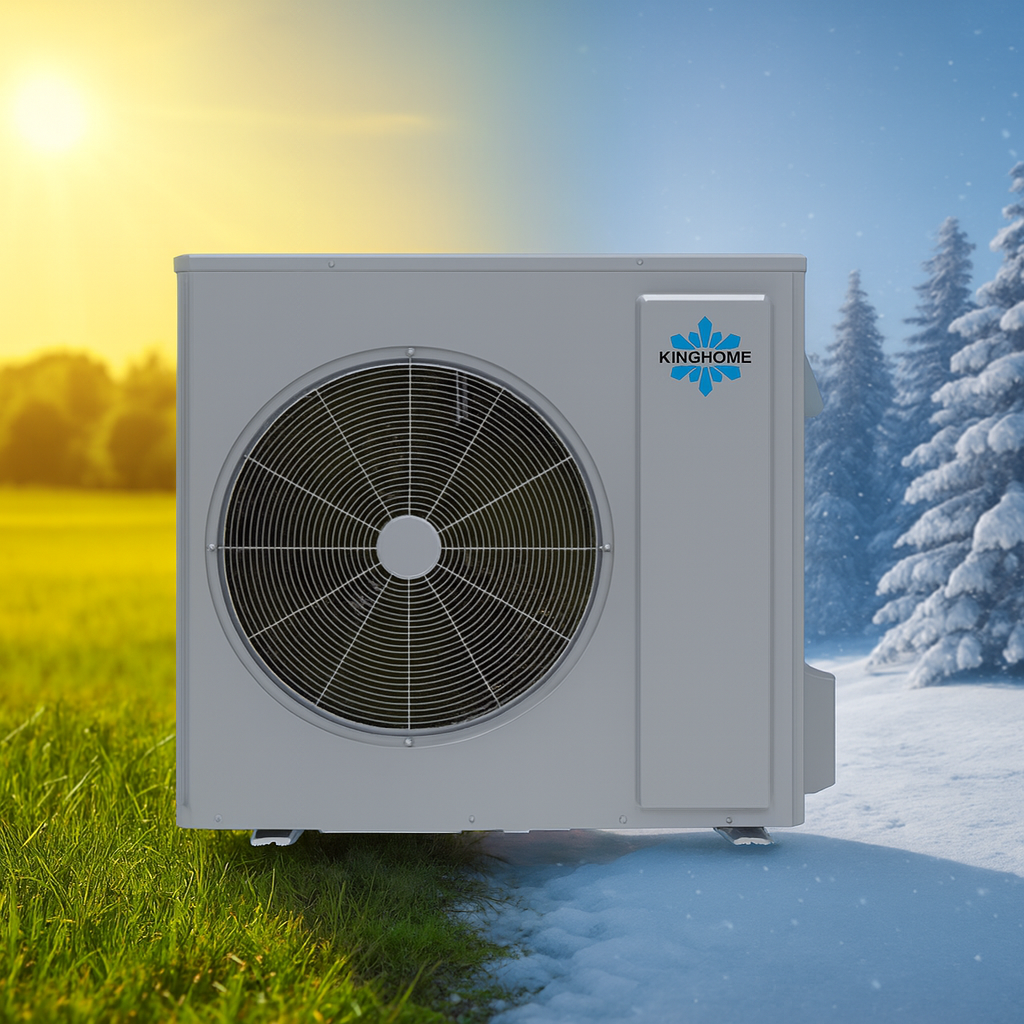

High Performance: 100% cooling capacity at 46°C; 100% heating capacity at -15°C.
02

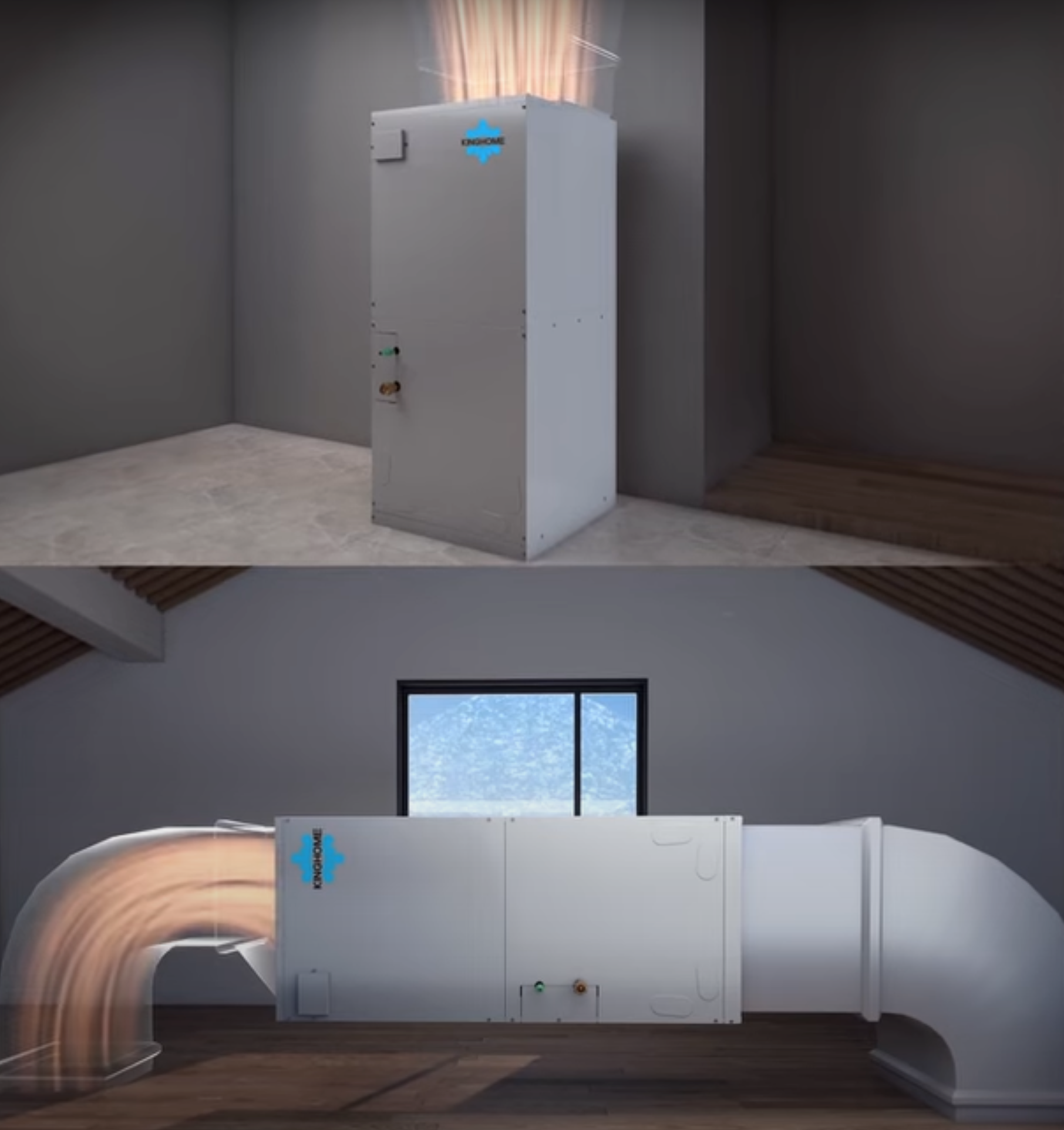

Multi-Position Air Handler: Flexible configuration for vertical or horizontal setups.
03

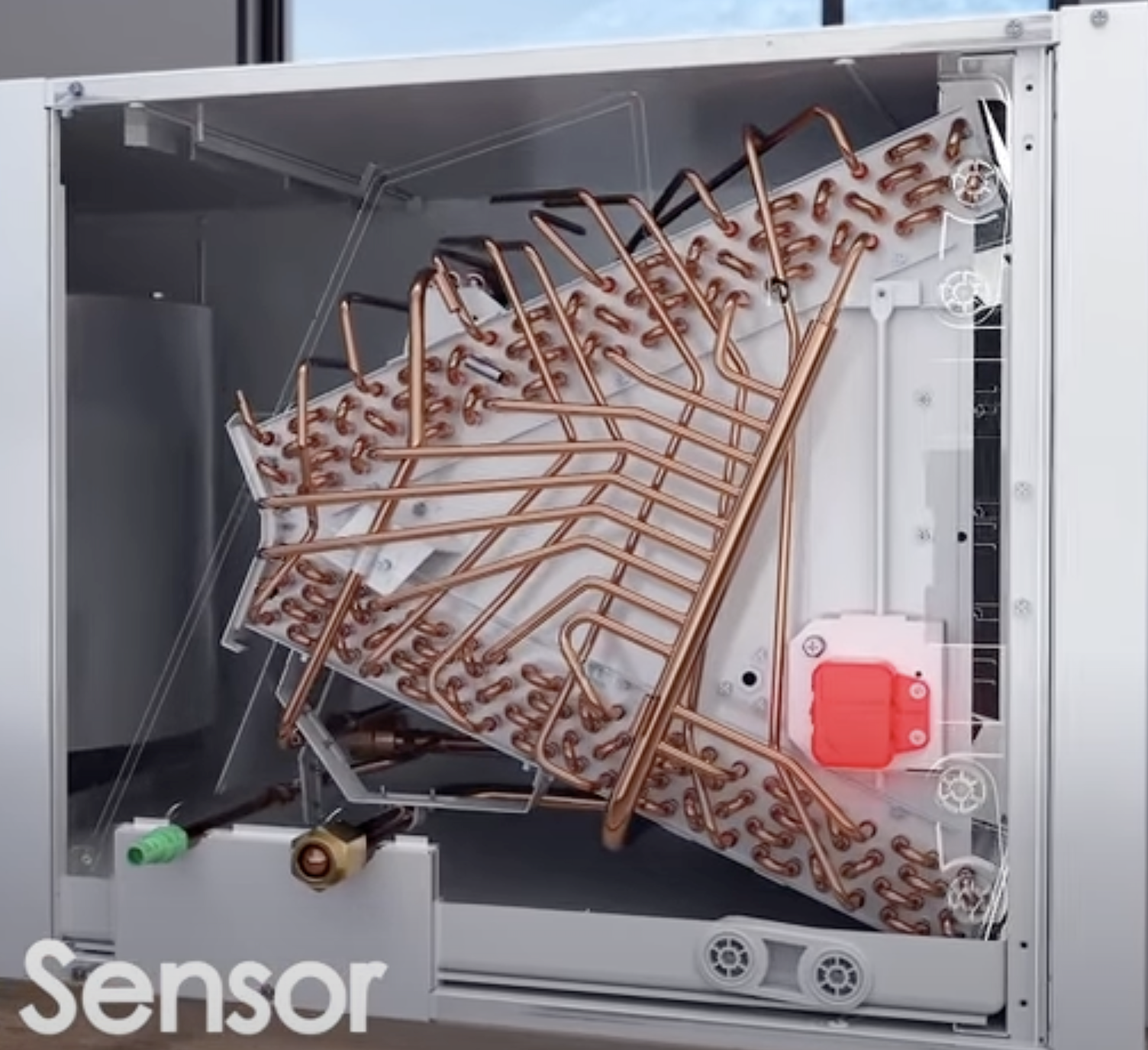

Refrigerant Leak Sensor: Installed in R32 air handler. Monitor safety and ensure efficiency.
04
Easy Installation: Operate condensers as heat pumps using just 2 or 4 wires in RS485 mode.
05
Dual Fuel Compatible:
Seamless integration with gas furnaces for hybrid heating.
Ultranixx Units Collection

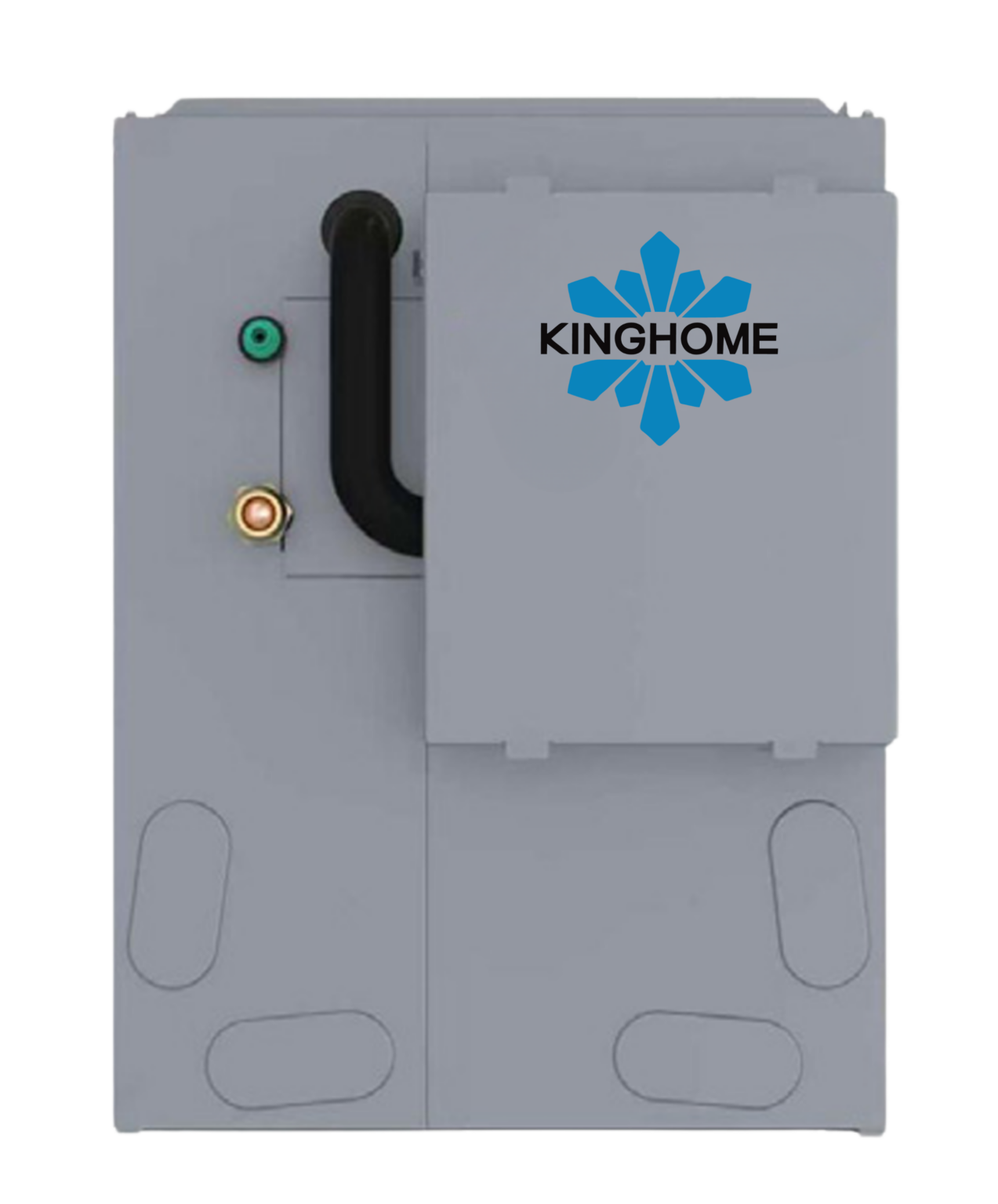

A Coil
Air Handler

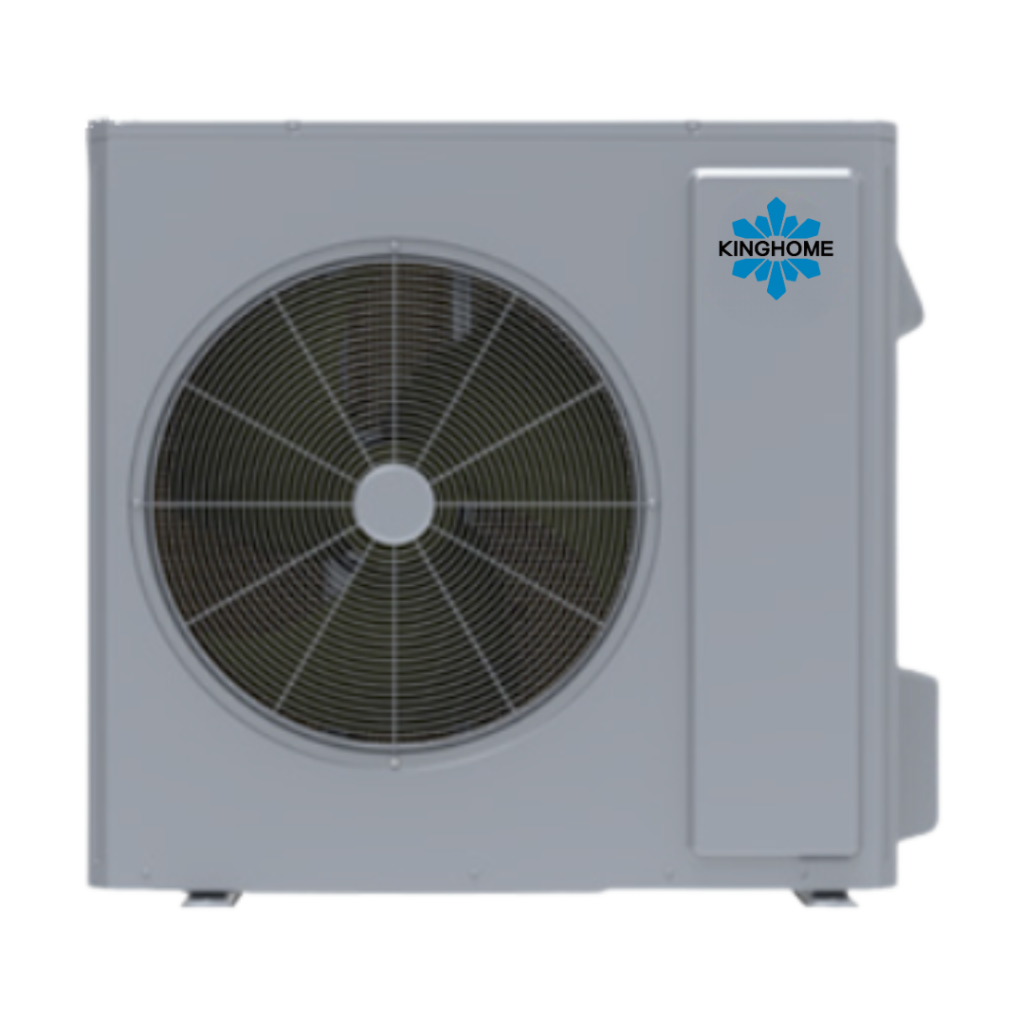

2-3 Ton Heat Pump

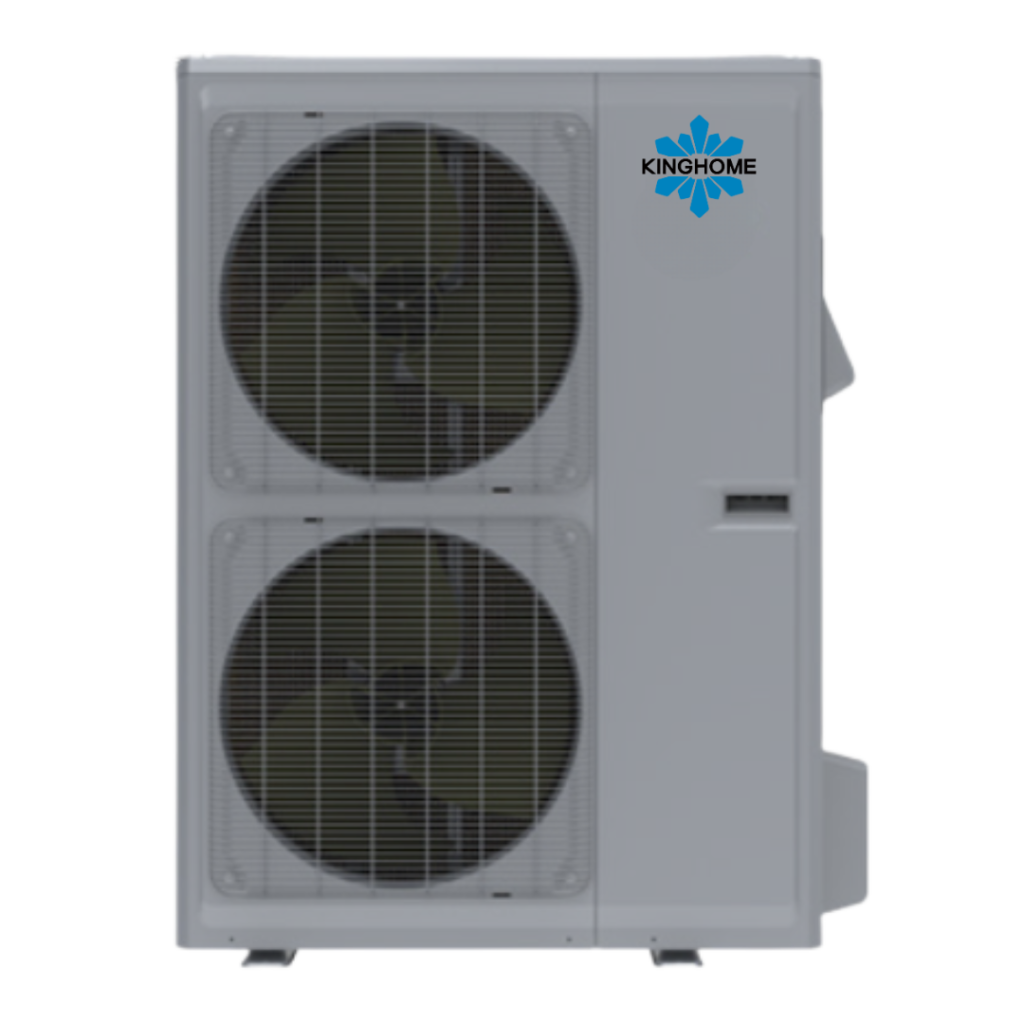

4-5 Ton Heat Pump

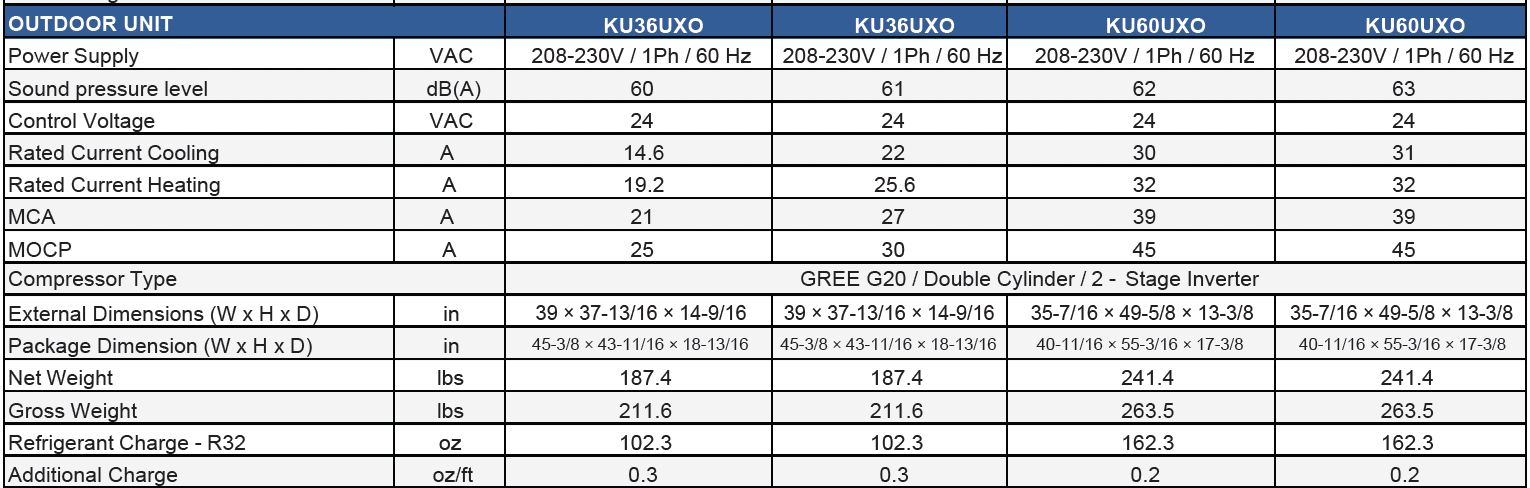

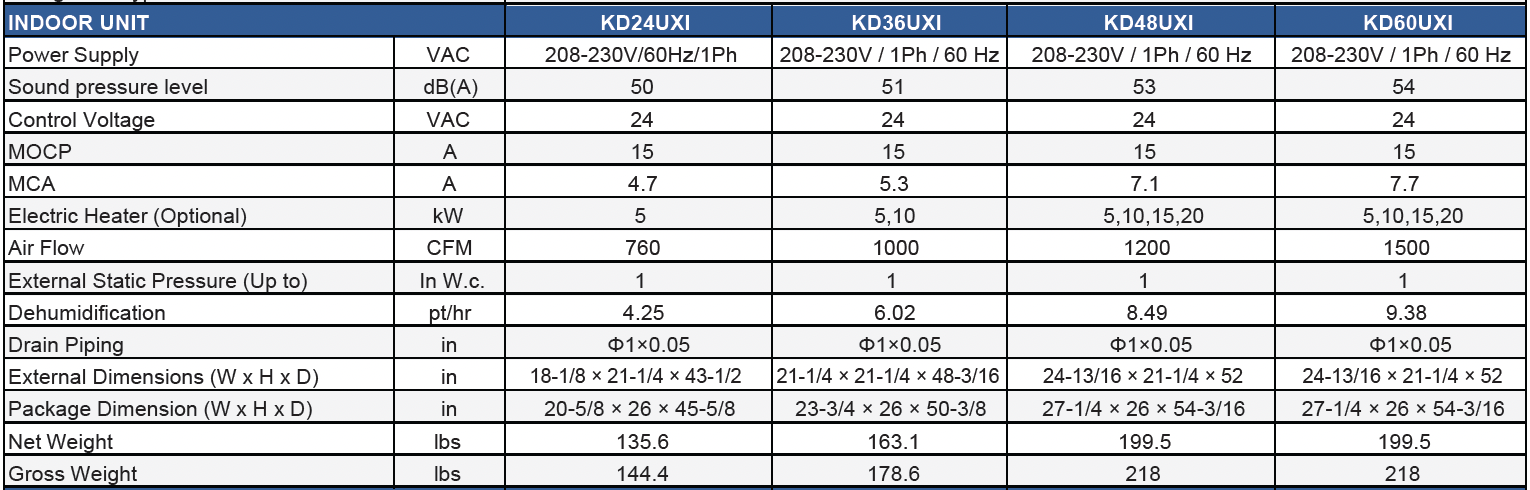

Performance Data
Kinghome-R32-Ultranixx-Sales-Brochure.pdf

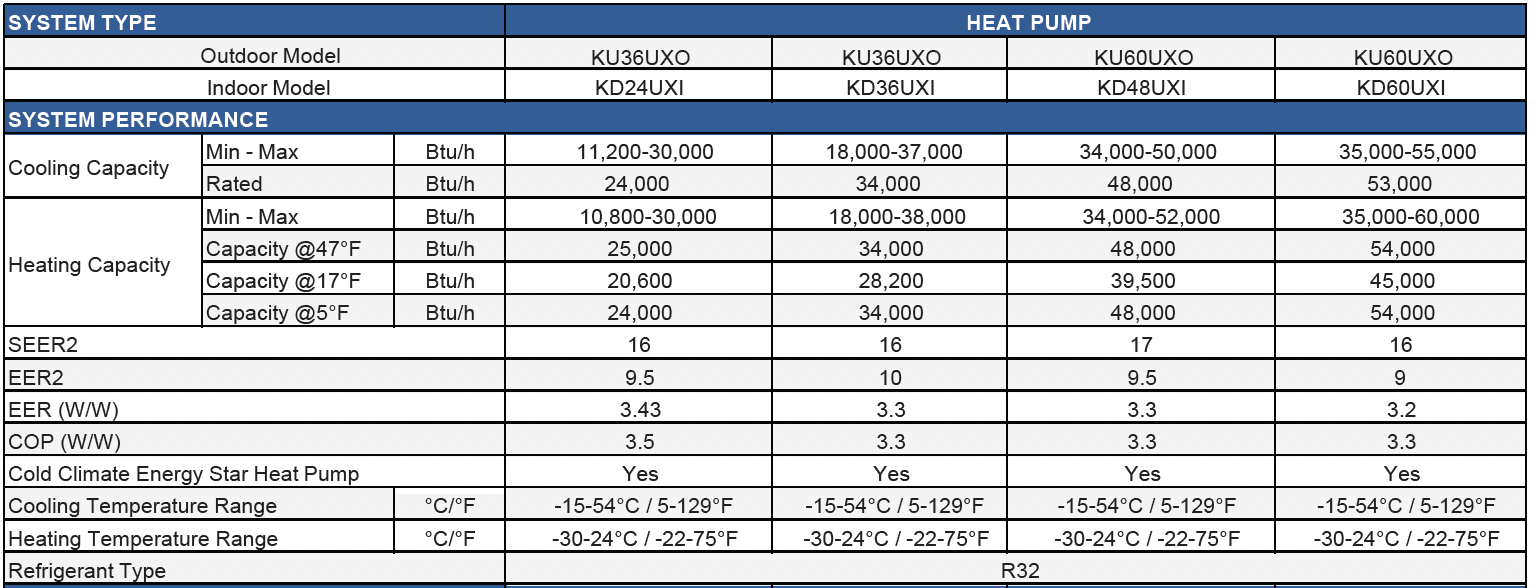

Heat Pump System
Heat Pump
Air Handler

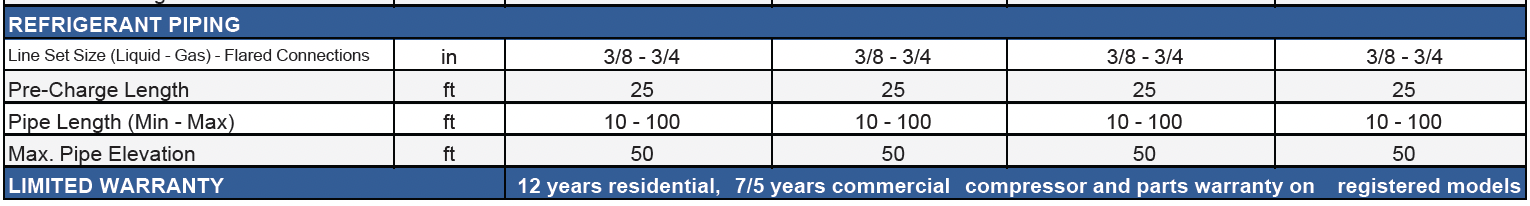

A coil & Refrigerant Piping
Heat Pump System
Heat Pump
Air Handler
A coil & Refrigerant Piping
Technical Document
Manual
Submittal
Submittal-Ultranixx 24K A-Coil-KCAC24FNHA+KU36UXO
Submittal-Ultranixx 36K A-Coil-KCAC36FNHA+KU36UXO
Submittal-Ultranixx 48K A-Coil-KCAC48HNHA+KU60UXO
Submittal-Ultranixx 60K A-Coil-KCAC60HNHA+KU60UXO
Submittal-Ultranixx 24K Air Handler-KD24UXI+KU36UXO
Submittal-Ultranixx 36K Air Handler-KD36UXI+KU36UXO
Submittal-Ultranixx 48K Air Handler-KD48UXI+KU60UXO
Submittal-Ultranixx 60K Air Handler-KD60UXI+KU60UXO
Kinghome Heat Pumps are eligible for
Canadian federal and local rebate programs.
Highest Canadian Greener Home Grant $5,600
British Columbia
Total Rebate In BC
Up to $15,000
